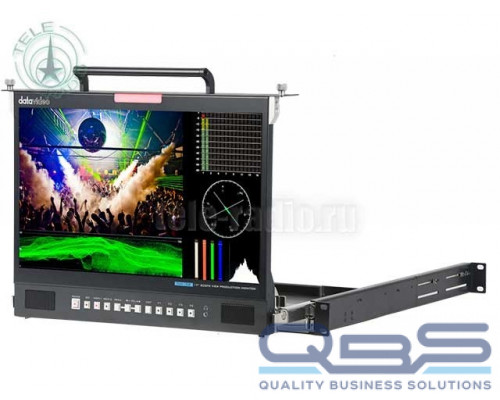

Datavideo TLM-170FM

Номер модели

TLM-170FM

Screen

17.3" LED Backlit

Chassis

Pull-Out

Resolution

1920x1080

Viewing Angle

(H) +89/-89°
(V) +89/-89°

Luminance/Contrast

300cd/m²
700:1

Video Inputs

1 x 12G SDI
2 x HDMI (2.0)

Loop Through

1 x 12G SDI
1 x HDMI (2.0)

Supported Input Resolutions

SDI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
4096x2160Psf (23.98/24/25/29.97/30)
3840x2160Psf (23.98/24/25/29.97/30)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080Psf (23.98/24/25/29.97/30)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
525i, 625i
HDMI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
720 x480i (NTSC), 720 x576i (PAL)
640 x800, 800 x600, 1024 x768, 1280 x800

Aspect Ratio

16:9, 4:3

Aspect Marker

YES

Safty Marker

YES

Tally LED

Live (Red)
Cued (Green)

Audio In/Out

Input: Embedded Audio (48KHz sampling)
Output: Analog stereo (Phone Jack)
Speaker x 2 (3W)

Special Features

waveform,
vector scope,
Focus Peaking,
False Color,
Exposure (Zebras),
Histogram,
HDR / SDR,
Time Code,
Audio Vector,
Camera Log,
Gamma, Marker,
Pixel to Pixel,
Zoom,
H/V Delay,
DSLR,
Freeze,
Image Flip,
Check Field,
Level Meter,
Color Bar,
Color Calibration.

Dimension (WxHxD)

403 x 305 x 37 mm

Weight

4.7kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 34.6W

What's in the Box

1 x TLM-170FM product
1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro
