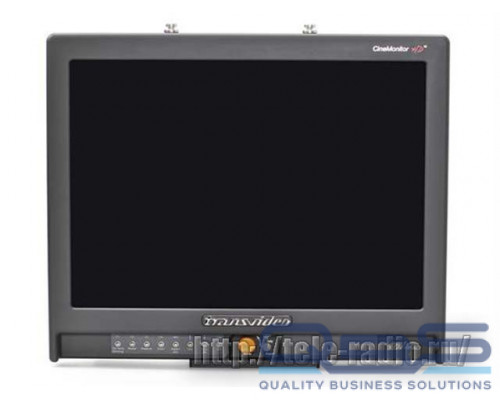

Видеомонитор Transvideo CineMonitorHD 3DView "S"
- CineMonitorHD10 3DView "S" dual SDI/HDMI + synchronizer
- CineMonitorHD12 3DView "S" dual SDI/HDMI + synchronizer
- CineMonitorHD15 3DView "S" dual SDI/HDMI + synchronizer
The CineMonitorHD 3DView S includes all tools and functions of the CineMonitorHD Evolution family plus a complete and revolutionary 3D processing.
Each camera/eye can be independently monitored as well as flipped verticaly and/or horizontaly. The measurement tools (Waveform and Histogram) display the 2 signals analysis superimposed.
Trully universal, the CineMonitorHD 3DView S accepts HD SDI and HDMI left and right signal as well as side by side. With its embedded synchronizer and genlock analyser tools, the monitor is capable of working with non-genlocked cameras (like DSLRs). Two processed SDI outputs deliver the synchronized signals, as left and right or Side by Side. H&V flips are applied to these outputs.
It can also be used for regular 2D HD productions.
Firmware and software updates are possible by the user with a USB key.
Технические характеристики Transvideo CineMonitorHD 3DView "S"
| Video Inputs & outputs | 2 x HD/SD SDI + 2 Rclk out (BNC) 2 x mini HDMI in 2 x HD/SD SDI processed out (BNC) |
|---|---|
| Contrast ratio Viewing angle Brightness |
max 500:1 ±80° H, +60/-80° V 1000Nits |
| Dimensions (l x h x d) |
298 x 262 x 105 mm 11.7 x 10.3 x 4.1 inches |
| Weight | 3800g, 8.4lbs |
| Power Power Consumption |
XLR4 connector (-1, +4) -with galvanic insulation 10 - 36V DC /46W |
