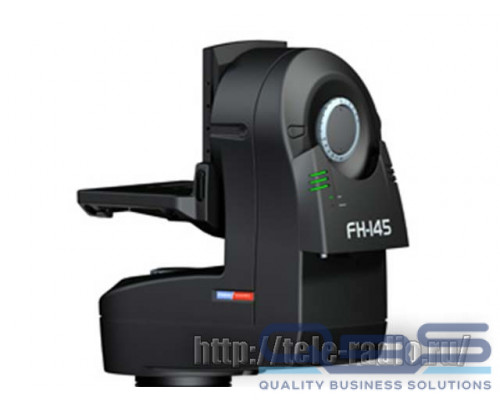

Vinten FH-145 Head V4101-0001

Штативная головка Vinten FH-145 Head V4101-0001

• FH-145 V4101-0001
• Dimensions H: 500 L: 440 D: 245
• (Including cradle)
• Weight 23.4Kg, cradle 2.9Kg
• Pan Range 720 deg (No end stops)
• Tilt Range 100 deg (+/- 50 deg)
• Payload 66Kg / 145lbs
• Rated load inertia 7.5Kgm2
• Speed 0.01 - 60deg/sec
• Maximum acceleration 60 deg /sec^2
• Position resolution 22 Bit
• Repeatability <0.03 deg, 2 mins of arc
• Pan encoder > 2 mil counts / rev
• Tilt encoder > 2 mil counts / rev
• Operating Temp indoor: 5-50deg 90%
• humidity non condensing
• Storage: -40-60 deg
• Movement on start up None
• Power 175W
• Voltage 100-240V ac 50.60Hz
• auto-ranging
• Power Neutric "True 1" Power input
• Fused
• Unfused power output using
• Neutric "True 1" outlet
• GPIO Lens D-type for digital, zoom and focus
• Indication Power, communications & VR data
• Power on/off switch (brightness of light
• can be adjusted)
• Profile Control interfaces Fusion VRC, FCS16 and LCS.
• Own interface to setup and
• diagnose faults
• NLD All Fujinon and Canon full
• servo lenses
• Tilt lock on top of unit Software indication of lock on
• Cable restraint Mounting 4 bolt Mitchel fixing, Quickfix
• Diagnostic/set-up tool Limits, feedback on shot status,
• GPIO, position, save data to transfer
• to another head, error reporting
