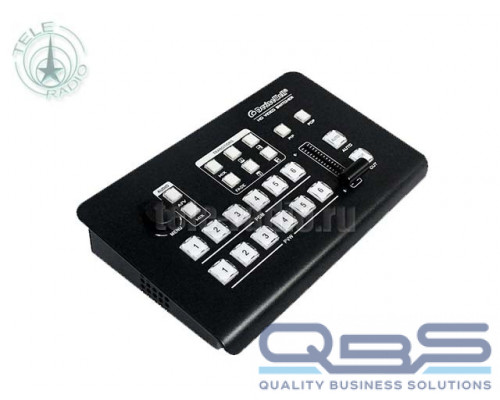

Видеомикшер Devicewell HDS7106
Super Mini Switcher; HDMI *2 +SDI *4;SD/HD/3G, PIP, POP
VIDEO SIGNAL INPUT
| SDI/HDMI video signal |
| 270Mbps~3Gbps |
| Standard |
| >15dB 5MHz~3GHz |
| 800mV ± 10% (SDI / HDMI) |
| 100Ω (HDMI) 75 Ω (SDI) |
| adaptive |
| 480i/576i,480p/576p,720p,1080i,1080p, |
1920x1080,1680x1050,1600x900,1440x1050, 1366x768,1360x768,1360x768,1280x1024, 1280x960, 1280x800,1280x768,1280x720,1280x600,1152x864, 1024x768,800x600 |
VIDEO SIGNAL OUTPUT
| SDI/HDMI video output |
| 270Mbps~3Gbps |
| Standard |
| >15dB 5MHz~3GHz |
| 800mV ± 10% (SD / HDMI) |
| 100Ω (HDMI) 75 Ω (SDI) |
| 0V±0.5V |
| Support |
Name: Switcher
Material: Advanced Black Metal
Channel: 6-Channel
Size: 255*153*58MM
Power supply: 12V/DC
PORTABLE ALL-IN-ONE DESIGN
IT INTEGRATED MULTI-SCREEN PREVIEW PROCESSOR, SPECIAL EFFECTS GENERATOR, AUDIO PROCESSOR, CONTROL KEYBOARD ETC. OF THE SWITCHER.
CONTROL PARAMETERS
Serial RS232
Control 9600 baud, 8 bits, 1 stop bit, no parity
Connection 9-pin D-type port, 2-RX, 3-TX, 5-GND
Network control RJ45,100M
Controling Devicewell Matrix Special Software For Windows operating systems
Optional
Power rate 22w
GENERAL PARAMETERS
Power supply 12V/DC
Power less than 10W
Size Standard 1/2 U
Control panel Supports on-site production, integrated with multiple buttons
Operating temperature 0 ° C ~ 50 ° C without condensation
Storage temperature -20 ° C ~ 75 ° C
Working humidity 20%~70%RH
Storage humidity 0%~90%RH, no condensation
