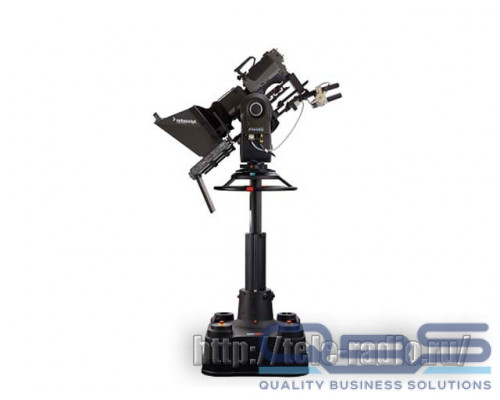

Vinten FP-188+ Pedestal V3952-0006 Robotic and Manual Pedestal Up to 85 kg.

• FP-188 V3952-0006
• VR upgrade VR PED UPGRADE
• Height Range 660 mm - 1430 mm / 26 ” - 56 ”
• On Shot Stroke 770 mm / 30 ”
• Doorway Tracking Width 800 mm / 32 ”
• Steering Ring Diameter 635 mm / 25 ” *
• Maximum Floor Speed 300 mm / 12 ” / second
• Minimum Floor Speed 25 mm / 1 ” / second
• Maximum Height Speed (On Shot) 150 mm / 6 ” / second
• Manual Operation Yes
• Power Consumption Peak 750W
• Power Input Auto ranging 110-240V AC 50/60 Hz
• Max Payload 85 kg / 188 lbs
• Repeatability
• X & Y = +/- 100mm
• Z = +/- 5mm
• X & Y = +/- 1.5° (after triangle test pattern)
• Degrees of freedom 3, X,Y,Z Degrees of freedom additional to pedestal but included in D1 serial packet: P, T, Z & F
• Resolution (X,Y,Z) = +/- <1mm
